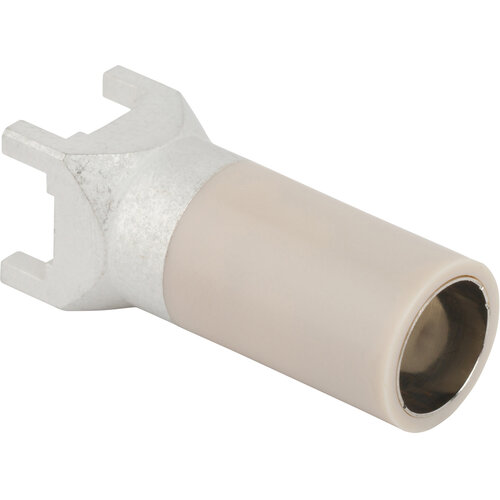

NDX Connectors
75 Ohm Dual-Shielded, Snap-In Interface for CATV Applications up to 18 GHz
Overview
NDX™ connectors deliver a more robust, user-friendly alternative to the traditional Type F interface. This connector system is engineered for next-generation CATV infrastructure and is engineered to support high-bandwidth applications up to 18 Gpbs while simplifying installation and improving long-term reliability.
NDX connectors feature an ultra-reliable mating interface which ultimately results in reduced cost of ownership for MSOs and requiring less technician visits to customer sites and more successful self-installs. Built for evolving network demands, the NDX platform is optimized for current DOCSIS 3.1 systems and future-ready for emerging 5G and IoT technologies.
Features and Benefits
- Dual-shield design for low RF leakage and ingress
- Close-entry, scoop-proof protection
- Audible snap-in mating mechanism
- Compatible with standard compression crimp tooling
- Support DOCSIS 3.1 infrastructure
- Color-coded configurations available for simplified installation
Key Technical Details
- Impedance: 75 Ω
- Frequency Range: DC - 18 GHz
- Dielectric Material: PTFE
Applications
- CATV and satellite set top boxes
- In-building CATV infrastructure
- Coaxial splitters and amplifiers
- Hybrid fiber-coax nodes
- Cable model termination systems
Browse our full NDX connector lineup to select the ideal impedance, mounting style, and frequency capability.
Specifications
NDX Connectors
75 Ohm
Electrical
| Impedance | 75 Ohm | |
| Frequency Range | DC -18 GHz | |
| Return Loss | DC - 3 GHz | -30 dB |
| 3 - 6 GHz | -25 dB | |
| 6 - 9 GHz | -20 dB | |
| 9 - 18 GHz | -15 dB | |
| RF Leakage | DC - 1.8 GHz | -100 |
| 1.8 - 3 GHz | -90 dB | |
| 3 - 6 GHz | -80 dB | |
| Current Handling | 5 Amps Max | |
Environmental
| Temperature Range | −40°C to +140°C |
| RoHS Compliance | Compliant with Exemption 6C |
Mechanical
| Body | Brass, Gold Plating |
| Contact | Beryllium Copper, Nickel Plating |
| Insulator | PTFE, Natural |
Note: These characteristics are typical and may not apply to all connectors.
Connector configurations may affect performance.
