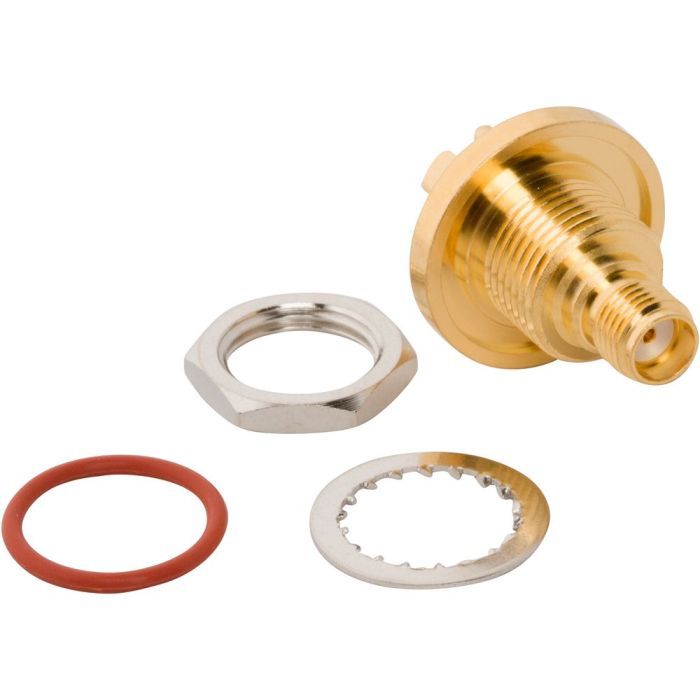

SMA PCB End Launch Jack Bulkhead 50 Ohm IP67 0.110 PCB ARC

Name: SMA PCB End Launch Jack Bulkhead 50 Ohm IP67 0.110 PCB ARC
SKU: 901-10387

In stock

901-10387

Product Compliance

RF Connector SMA PCB End Launch Jack Bulkhead 50 Ohm IP67 0.110 PCB ARC

Downloads

Product Life Cycle
Part Status	Active

Body Finish	Gold
Body Material	Brass
Cable Type (Terminates to)	Not Applicable
Contact Finish	Gold
Contact Material	Beryllium Copper
Contact Termination	Solder
Coupling Mechanism	Threaded
Export Control Classification Number	EAR99
Frequency (Max GHz)	3
Gender	Jack
IP Rating	IP67
Impedance (Ohms)	50
Insulator Material	PTFE
Isolated	No
Low PIM	No
Mil Qualified	Not Mil Qualified
Non Magnetic	No
Orientation	Straight
PCB Thickness (Max)	0.062 Inches (1.57 mm)
Panel Mounting Feature	Bulkhead - Rear Mount
Ports	1 (Single Port)
Size Category	Subminiature
Temp (Max Degrees Celsius)	165
Temp (Min Degrees Celsius)	-65
Termination Style	PCB - End Launch
Thread Direction	Standard
