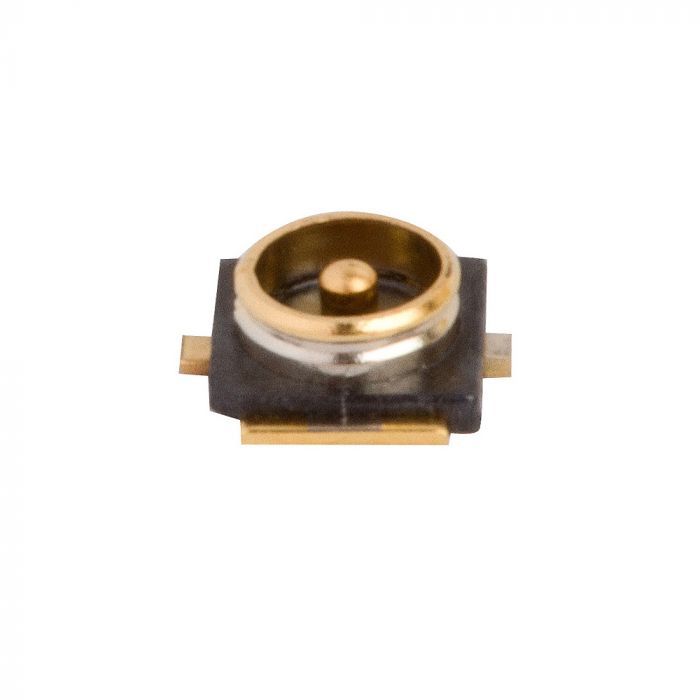

AMC4 Straight PCB Jack Surface Mount 50 Ohm

Amphenol RF is pleased to expand our cable assembly portfolio with MMCX cable assemblies designed on ultra-flexible 0.81 mm micro‐coax cable. These 50 ohm assemblies are currently available in a single configuration – MMCX right-angle plug to AMC4 right-angle plug – with additional assemblies being released shortly.

Amphenol RF is pleased to introduce the new RP-SMA bulkhead jack to AMC4 plug micro-miniature cable assembly into our robust and broad portfolio of fixed-length cable assemblies.

Amphenol RF is pleased to expand our waterproof IP‐rated and tamper‐resistant cable assembly options with TNC and RP-TNC configurations.

Amphenol RF's RP-SMA to AMC4 cable assemblies provide reliable performance up to 6 GHz in compact applications. Featuring an IP67-rated RP-SMA bulkhead jack for waterproof protection, they use ultra-thin 1.13 mm coaxial cable for easy routing in tight spaces. Available in standard lengths from 50 to 400 mm, with custom options on request, they are made from gold-plated brass and phosphor bronze for durability. Designed for IoT, GPS, wireless communication, and industrial enclosures, they operate from -40°C to 90°C with a 50Ω impedance and 200 VRMS dielectric withstanding voltage.

The Amphenol RF FAKRA to AMC4 Cable Assemblies Data Sheet highlights a versatile, high-performance interconnect solution designed for automotive, IoT, and compact RF applications. These cable assemblies combine the secure, high-reliability FAKRA interface with the ultra-miniature AMC4 connector, ensuring seamless integration in space-constrained designs without compromising signal integrity. Engineered for low-loss transmission and robust mechanical performance, they are ideal for antenna connections, telematics, and wireless communication systems.

The Amphenol RF Ultraminiature Product Series datasheet highlights AMC, AMC4, and AMMC micro coaxial connectors, featuring low profiles and small footprints ideal for space-constrained applications like IoT and consumer devices. These 50 ohm connectors, compatible with industry standards, offer snap-on mating for easy connection and provide excellent electrical performance from DC to 6 GHz​​.

The Amphenol RF Micro-Miniature Cable Assembly Solutions Guide highlights compact, high-frequency cable assemblies designed for space-constrained applications. It details key features such as lightweight construction, precision performance, and durability, making them ideal for aerospace, medical, and IoT devices.

The Amphenol RF Locking MHF 4 Ultraminiature Cable Assemblies datasheet describes pre-configured, vibration-resistant 50-ohm cable assemblies featuring the I-PEX MHF® 4 LK locking connector. These ultraminiature assemblies are designed with tamper-resistant, waterproof (IP67) options and utilize 1.37 mm micro-coax cable paired with SMA or RP-SMA connectors for reliable electrical performance in rugged environments. Ideal for continuous shock and vibration applications, they are used in UAVs, IoT devices, military systems, smart agricultural equipment, and communication networks. The datasheet also outlines available standard lengths (50–400 mm) and key specifications, including a frequency range up to 9 GHz, 500 mating cycles minimum, and materials such as gold-plated brass and PTFE insulation.
