Coaxial Cable Guide

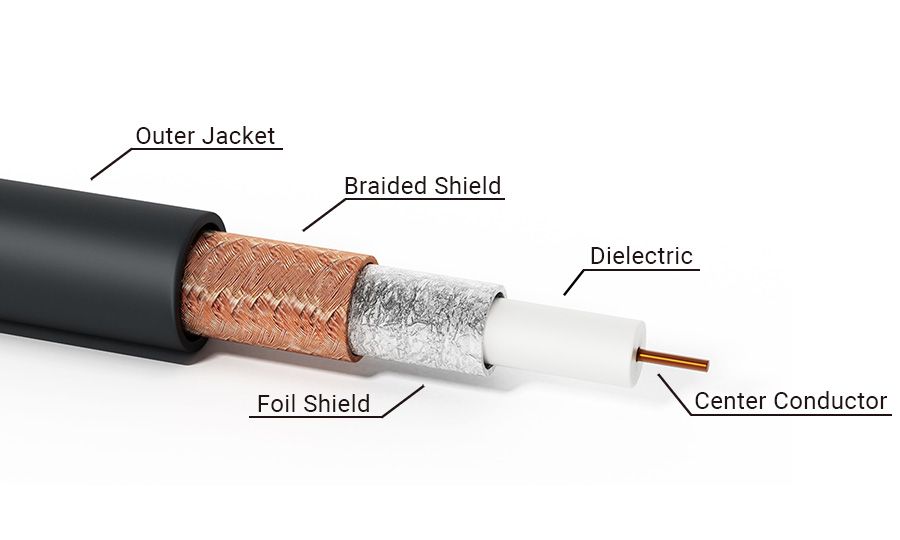

Amphenol RF offers a broad range of connectors designed to terminate to many commercially available coaxial cable types. The following cable guide lists standard flexible, Low Loss, semi-rigid and conformable, micro-coaxial, and corrugated cable as well as associated product links.

Flexible RG Cables | Other Flexible Cables | Semi-Rigid & Conformable Cables | Low Loss (LMR®) Cables | Micro-Coaxial Cables | Corrugated Cables | By Cable Group

Flexible RG Cables

 Cable TypeMil DesignationImpedanceDielectricOD (Inches)Shield ConstructionCable GroupRelated Product Links
RG-8   52 PE 0.405 Braid G4 Connectors
RG-9   51 PE 0.420 Braid G4 Connectors
RG-55   53.5 PE 0.200 Braid C1 Connectors
RG-58 /28 -RG58 53.5 PE 0.195 Braid C Connectors
RG-59 /29 -RG59 73 PE 0.242 Braid E Connectors
RG-62   93 PE 0.242 Braid E Connectors
RG-87   50 PTFE 0.425 Braid G4 Connectors
RG-122 /54 -RG122 50 PE 0.160 Braid C Connectors
RG-140   75 PTFE 0.233 Braid E Connectors
RG-141   50 ST 0.190 Braid C1 Connectors
RG-142 /60 -RG142 50 ST 0.195 Braid C1 Connectors
RG-174   50 PE 0.100 Braid B Connectors
RG-178 /93 -RG178 50 ST 0.072 Braid A Connectors
RG-179 /94 -RG179 70 ST 0.100 Braid B1 Connectors
RG-179 Double Braided   75 ST 0.125 Double Braid B3 Connectors
RG-180 /95 -RG180 93 ST 0.140 Braid K3 Connectors
RG-187   75 PTFE 0.105 Braid B1 Connectors
RG-188   50 PTFE 0.105 Braid B Connectors
RG-188 Double Braided   50 PTFE 0.105 Double Braid B2 Connectors
RG-195   95 PTFE 0.450 Braid K3 Connectors
RG-196   50 PTFE 0.072 Braid A Connectors
RG-210   93 PTFE 0.242 Braid E Connectors
RG-213 /74 -RG213 50 PE 0.405 Braid G4 Connectors
RG-214 /75 -RG214 50 PE 0.425 Braid G4 Connectors
RG-223 /84 -RG223 50 PE 0.211 Double Braid C1 Connectors
RG-225   50 PTFE 0.430 Braid G4 Connectors
RG-302 /110-RG302 75 ST 0.201 Braid G4 Connectors
RG-303 /111-RG303 50 ST 0.170 Braid C Connectors
RG-304 /112-RG304 50 ST 0.280 Braid C1 Connectors
RG-316 /113-RG316 50 ST 0.102 Braid B Connectors
RG-316 Double Braided   50 ST 0.102 Double Braid B2 Connectors
RG-393 /127-RG393 50 ST 0.390 Braid G4 Connectors
RG-400 /128-RG400 50 ST 0.195 Braid C1 Connectors
Back To Top

Other Flexible Cables

 Cable TypeMil DesignationImpedanceDielectricOD (Inches)Shield ConstructionCable GroupRelated Product Links
AT&T 734A   75 PE 0.235 Braid  I Connectors
AT&T 735A   75 PE 0.129 Braid I2 Connectors
Belden 1152A   75 FFEP 0.273 Braid G1 Connectors
Belden 1426A   75 FHDPE 0.242 Braid E1 Connectors
Belden 1505A   75 FHDPE 0.233 Braid E1 Connectors
Belden 1506   75 PE 0.133 Braid F1 Connectors
Belden 1794A   75 FHDPE 0.320 Braid/Foil Special Connectors
Belden 1855A   75 FHDPE 0.159 Braid K3 Connectors
Belden 1865A   75 FHDPE 0.150 Braid K3 Connectors
Belden 4794R   75 FHDPE 0.320 Braid/Foil Special Connectors
Belden 4855R   75 FHDPE 0.159 Braid/Foil Special Connectors
Belden 735A1   75 FHDPE 0.129 Braid I2 Connectors
Belden 7806A   50 FHDPE 0.195 Braid C Connectors
Belden 7807A   50 FHDPE 0.195 Braid C2 Connectors
Belden 82108   75 FFEP 0.202 Braid F1 Connectors
Belden 8232A   75 FHDPE 0.315 Braid Special Connectors
Belden 8241   75 PE 0.240 Braid E Connectors
Belden 8263 MIL-C-17D 75 PE 0.241 Braid E Connectors
Belden 8279   75 PE 0.220 Braid E Connectors
Belden 8281   75 PE 0.305 Braid E1 Connectors
Belden 88240   53 FEP 0.159 Braid D Connectors
Belden 89248   75 FFEP 0.222 Braid G1 Connectors
Belden 89907   50 FFEP 0.160 Braid D Connectors
Belden 9100   75 FPE 0.237 Braid E1 Connectors
Belden 9104   75 PE 0.144 Braid F1 Connectors
Belden 9209   75 PE 0.222 Braid E Connectors
Belden 9221   75 FHDPE 0.097 Braid B1 Connectors
Belden 9258   50 FPE 0.242 Braid G2 Connectors
Belden 9290   75 FPE 0.288 Braid G1 Connectors
Belden 9907   50 FHDPE 0.185 Braid C Connectors
Belden 9913   50 PE 0.405 Braid G3 Connectors
Belden 9914   50 FHDPE 0.403 Braid G3 Connectors
Back To Top

Semi-Rigid & Conformable Cables

 Cable TypeMil DesignationImpedanceDielectricOD (Inches)Shield ConstructionCable GroupRelated Product Links
RG-401 (0.250 Semi-Rigid) /129-RG401 50 ST 0.250 Cu. S-R L3 Connectors
RG-402 (0.141 Semi-Rigid) /130-RG402 50 ST 0.141 Cu. S-R L Connectors
RG-405 (0.086 Semi-Rigid) /133-RG405 50 ST 0.086 Cu. S-R L2 Connectors
0.047 Semi-Rigid   50 PTFE 0.047 Braid L4 Connectors
0.085 Semi-Rigid   50 PTFE 0.085 Braid L2 Connectors
Back To Top

Low Loss (LMR®) Cables

 Cable TypeMil DesignationImpedanceDielectricOD (Inches)Shield ConstructionCable GroupRelated Product Links
LMR-100A-PVC   50 FEP 0.100 Braid B Connectors
LMR-195   50 FEP 0.195 Braid C Connectors
LMR-200   50 FEP 0.200 Braid C2 Connectors
LMR-240   50 FEP 0.240 Braid G2 Connectors
LMR-400   50 FEP 0.400 Braid G3 Connectors
LMR-600   50 FEP 0.600 Braid K Connectors
Back To Top

Micro-Coaxial Cables

 Cable TypeMil DesignationImpedanceDielectricOD (Inches)Shield ConstructionCable GroupRelated Product Links
0.81mm   50 FEP 0.810 Braid P1 Connectors | Cables
1.13mm   50 FEP 1.130 Braid P2 Connectors | Cables
1.32mm   50 FEP 1.320 Double Braid P3 Connectors | Cables
1.37mm   50 FEP 1.370 Braid P4 Connectors | Cables
Back To Top

Corrugated Cables

 Cable TypeMil DesignationImpedanceDielectricOD (Inches)Shield ConstructionCable GroupRelated Product Links
1/4" Helical   50 PE 0.250 Braid N Connectors
3/8&quot Helical   50 PE 0.375 Braid N1 Connectors
Back To Top
