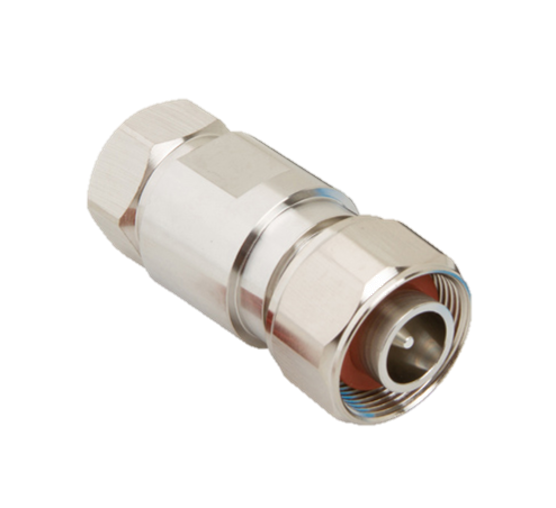

Amphenol RF offers a full range of 50 Ohm 4.1-9.5 connectors, adapters and cable assemblies. These interconnect products are engineered for the wireless market and ideal for applications requiring low passive intermodulation, or PIM.

4.1-9.5 interconnects are low PIM tested, making them ideal for mobile communication systems and wireless applications. These connectors are able to match the performance and mechanical robustness of a 7-16 or N-Type connector in a smaller footprint.

The Amphenol version features a patented ultra-slim push-pull coupling system which allows quick installation and ensures positive locking and high retention.

Features and Benefits
  • Excellent low PIM performance
  • High reliability threaded coupling mechanism
  • Supports a wide variety of cable types
  • Field replaceable connectors available
  • Distributed Antenna Systems (DAS)
  • Base Stations
  • Antennas
  • Cell Installations
  • RFID

4.1-9.5 Connectors Specifications


Impedance 50 Ohm
Frequency Range DC - 14 GHz
Voltage Rating 1400 Volts RMS Continuous
Dielectric Withstanding Voltage 2500 VRMS Min
VSWR (Return Loss)
     Straight DC - 0.5 GHz 1.065 (-30 dB) Max
     Straight 0.5 - 4 GHz 1.15 (-23 dB) Max
     Straight 4 - 10 GHz 1.22 (-20 dB) Max
Insulation Resistance  5000 MΩ Min
Center Contact Resistance 1 mΩ Max
Outer Contact Resistance 0.1 mΩ Max
RF Leakage -128 dB Max (DC-1 GHz)
Insertion Loss .05 √(f(GHz)) dB Max
Passive Intermodulation (PIM) -160 dBc
Power Handling 450 W @ 2 GHz @ 90 ºC


Temperature Range -40⁰C to +85⁰C
Thermal Shock IEC 60068-2-14-NA
Corrosion MIL-STD-202, Method 101 (Test Condition B)
Vibration IEC 60068-2-6-FC
Mechanical Shock IEC 60068-2-27
Moisture Resistance IEC 60068 40/ 085/ 21


Mating Cycles 500 Min
Coupling Mechanism Threaded
Interface Specification IEC 60169-11, DIN 47231
Engagement Force 15 N (3.37 lb) Typ
Disengagement Force 10 N (2.25 lb) Typ
Mating Torque, Min Working 10 -12 N-m (88-106 in-lbs)
Note: These characteristics are typical and may not apply to all connectors.
Connector configurations may affect performance.
