BNC
BNC connector types feature a bayonet style coupling mechanism that allows for quick connect and disconnect with positive locking. Mating is achieved with just a quarter-turn of the coupling nut. With a classic, dependable design, BNC RF connectors are suited to accommodate a large variety of RG and industry-standard coaxial cables, in a variety of termination styles.

What is a BNC Connector?

The Bayonet Neill Concelman (BNC) connector was developed by Paul Neill of Bell Labs and Amphenol's own, Carl Concelman, and was named after both inventors and the innovative bayonet locking mechanism that the connector utilizes. The BNC connector was originally designed for military applications but is mostly used in the broadcast market today. This connector has evolved to keep up with the changing landscape of the industry and now provides 12G SDI performance that is required in 4K and Ultra-HD applications. BNC connector types designed for coaxial cable have been widely adopted and continue to be a popular choice for existing and next-generation video technology.

Amphenol RF offers a full line of BNC connectors types in a multitude of female and male options. BNC connectors are miniature, lightweight and reliable. 50 ohm BNC and 75 ohm BNC connectors are available in configurations ideal for commercial and military-grade applications. A full line of printed circuit board (PBC) receptacles, bulkhead receptacles, reverse-polarity connectors, resistor terminations, and other accessories complement the product offering.

Find a BNC Connector using the filters on the left-hand side or with the quick links below:

Impedance: 50 Ohm | 75 Ohm

Body Style: Straight Plug | Right Angle Plug | Bulkhead Front Mount | Bulkhead Rear Mount | Straight Jack | Right Angle Jack

Cable Termination Style: Crimp | Clamp | Solder | Twist On

PCB Termination Style: Edge Mount | Through Hole

BNC Connector Features and Benefits
  • Bayonet coupling mechanism provides positive, quick mating and un-mating
  • 50 and 75 ohm impedance designs allow customers to match impedance to system requirements
  • Connectors are available for military, industrial and commercial applications
  • Designs available for many common BNC coaxial cable types
  • BNC female and male configurations
BNC Connector Applications
  • Antennas
  • Broadcast (75 Ω)
  • Telecommunications
  • Automotive
  • Computers/LANs
  • Medical Equipment
  • Satcom
  • Base Stations
  • Cable Modems
  • Instrumentation
  • Military/Aerospace

BNC Connectors Specifications

50 Ohm

Electrical

Items
Impedance 50 Ohm
Frequency Range DC - 4 GHz (DC -12 GHz on Extended Range Designs)
Voltage Rating 500 Volts RMS Max Continuous
Dielectric Withstanding Voltage 1500 VRMS Max
VSWR (Return Loss)
     DC - 4 GHz 1.3 (-18 dB) Max
Insulation Resistance  5000 MΩ Min
Center Contact Resistance 1.5 mΩ Min
Outer Contact Resistance 0.2 mΩ Min
RF Leakage 55 dB Max @ 3 GHz
Insertion Loss 0.2 dB Max @ 3 GHz
Power Handling 316 W Max @ 1 GHz @ 25 ºC

Environmental

Items
Temperature Range −65°C to +165°C
Thermal Shock MIL-STD-202, Method 107 (Test Condition G), except high temp test @ +200⁰C
Corrosion MIL-STD-202, Method 101 (Test Condition B) - 5% Salt Solution
Vibration MIL-STD-202, Method 204 (Test Condition D)
Mechanical Shock MIL-STD-202, Method 213 (Test Condition G) - No Discontinuity Permitted
Moisture Resistance MIL-STD-202, Method 106
Altitude MIL-STD-202 Method 105 (Test Condition C)

Mechanical

Items
Mating Cycles 500 Min
Coupling Mechanism Bayonet
Interface Specification MIL-STD-348

75 Ohm

Electrical

Items
Impedance 75 Ohm
Frequency Range DC- 4 GHz (DC - 12 GHz on Extended Range Designs)
Voltage Rating 500 Volts RMS Max Continuous
Dielectric Withstanding Voltage 1500 VRMS Max
VSWR (Return Loss)
     DC - 4 GHz 1.5 (-14 dB) Max
     12G Products: DC - 6 GHz 1.22 (-20 dB) Max
     12G Products: 6 - 12 GHz 1.43 (-15 dB) Max
Insulation Resistance  5000 MΩ Min
Center Contact Resistance 1.5 mΩ Min
Outer Contact Resistance 0.2 mΩ Min
RF Leakage 55 dB Max @ 3 GHz
Insertion Loss 0.2 dB Max @ 3 GHz
Power Handling 316 W Max @ 1 GHz @ 25ºC

Environmental

Items
Temperature Range −65°C to +165°C
Thermal Shock MIL-STD-202, Method 107 (Test Condition G), except high temp test @ +200⁰C
Corrosion MIL-STD-202, Method 101 ( Test Condition B) - 5% Salt Solution
Vibration MIL-STD-202, Method 204 (Test Condition D)
Mechanical Shock MIL-STD-202, Method 213 (Test Condition G) - No Discontinutiy Permitted
Moisture Resistance MIL-STD-202, Method 106
Altitude MIL-STD-202, Method 105 (Test Condition C)

Mechanical

Items
Mating Cycles 500 Min
Coupling Mechanism Bayonet
Interface Specification MIL-STD-348
 Note: These characteristics are typical and may not apply to all connectors.
Connector configurations may affect performance.

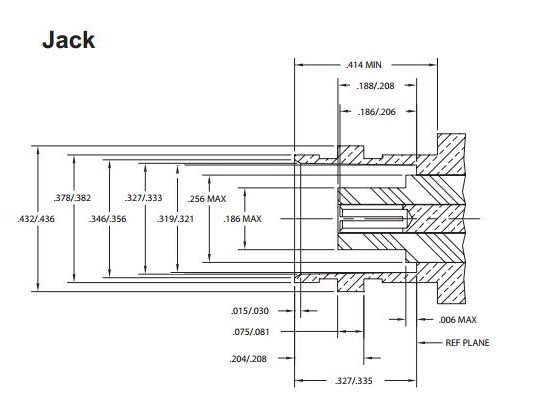

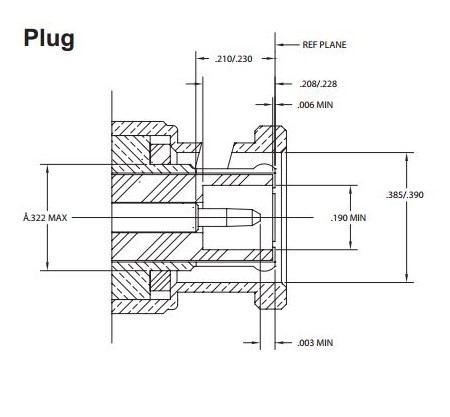

Interface Dimensions
