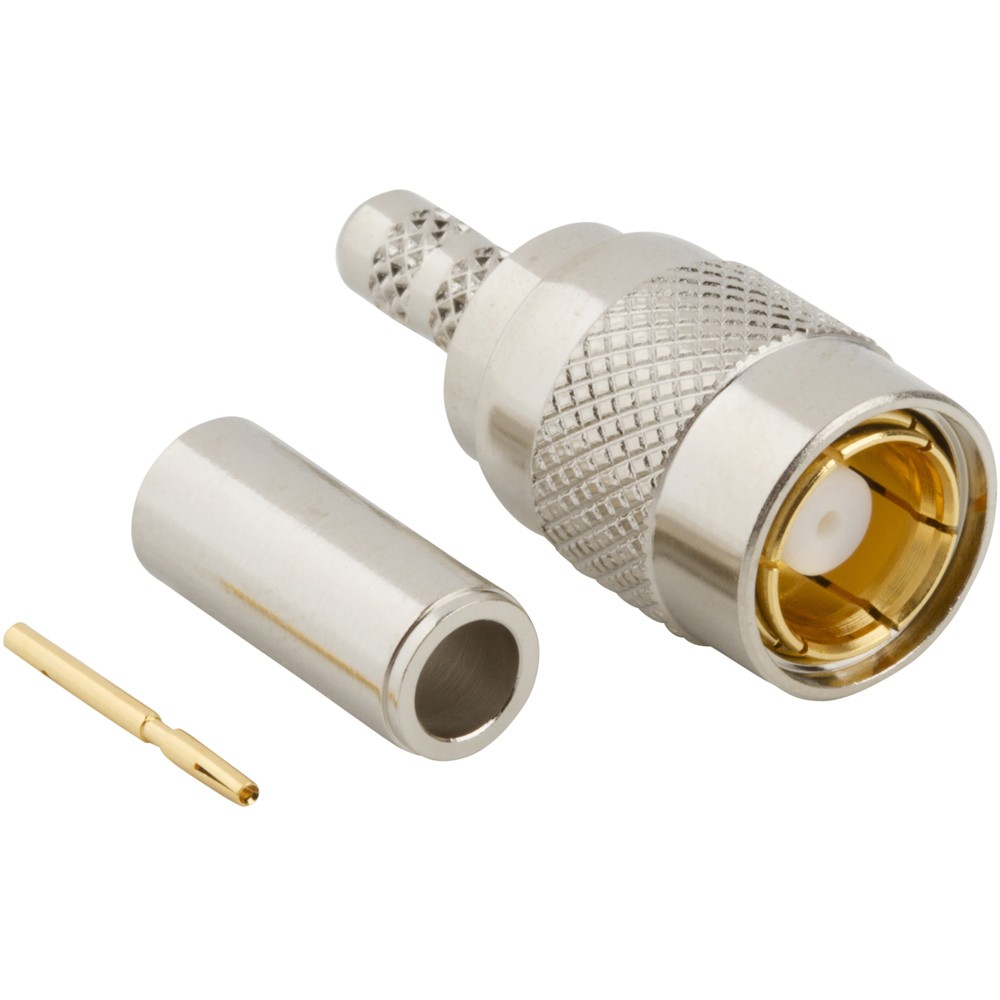

SMZ Connectors

SMZ Connectors

SMZ connector features the 75 ohm impedance and are ideal for instrumentation applications.

These connectors feature a secure push-pull latching mechanism for quick connects and disconnects.

Features and Benefits
  • Snap-on interface for quick disconnect and mating
  • Allows board-to-board mounting with a low insertion force
  • Telecommunications
  • Base Stations
  • Routers
  • Wireless
  • LAN Equipment

SMZ Connectors Specifications


Impedance 75 Ohm
Frequency Range DC - 2 GHz
Voltage Rating 335 Volts RMS Continuous
Dielectric Withstanding Voltage 1000 VRMS Max
Insulation Resistance  1000 MΩ Min
Center Contact Resistance 6 mΩ Max
Outer Contact Resistance 1 mΩ Max
RF Leakage -55 dB Max (2 - 3 GHz)
Insertion Loss
     Straight Connectors .03 dB Max @ 1.5 GHz
     Right Angle Connectors .06 dB Max @ 1.5 GHz


Temperature Range −65°C to +165°C
Thermal Shock MIL-STD-202, Method 107 (Test Condition B) except high temp test @ +200⁰C
Corrosion MIL-STD-202, Method 101 (Test Condition B) 5% salt solution
Vibration MIL-STD-202, Method 204, Snap On (Test Condition B) (15G's)
Mechanical Shock MIL-STD-202, Method 213, Snap on (Test Condition B) 75 G's @ 6 milliseconds 1/2 sine
Moisture Resistance MIL-STD-202, Method 106
Altitude MIL-STD-202, Method 105 (Test Condition C)


Mating Cycles 500 Min
Coupling Mechanism Snap-On
Engagement Force 14 lbs (62 N) Max
Disengagement Force 2 lbs (8.9 N) Min
Note: These characteristics are typical and may not apply to all connectors.
Connector configurations may affect performance.
