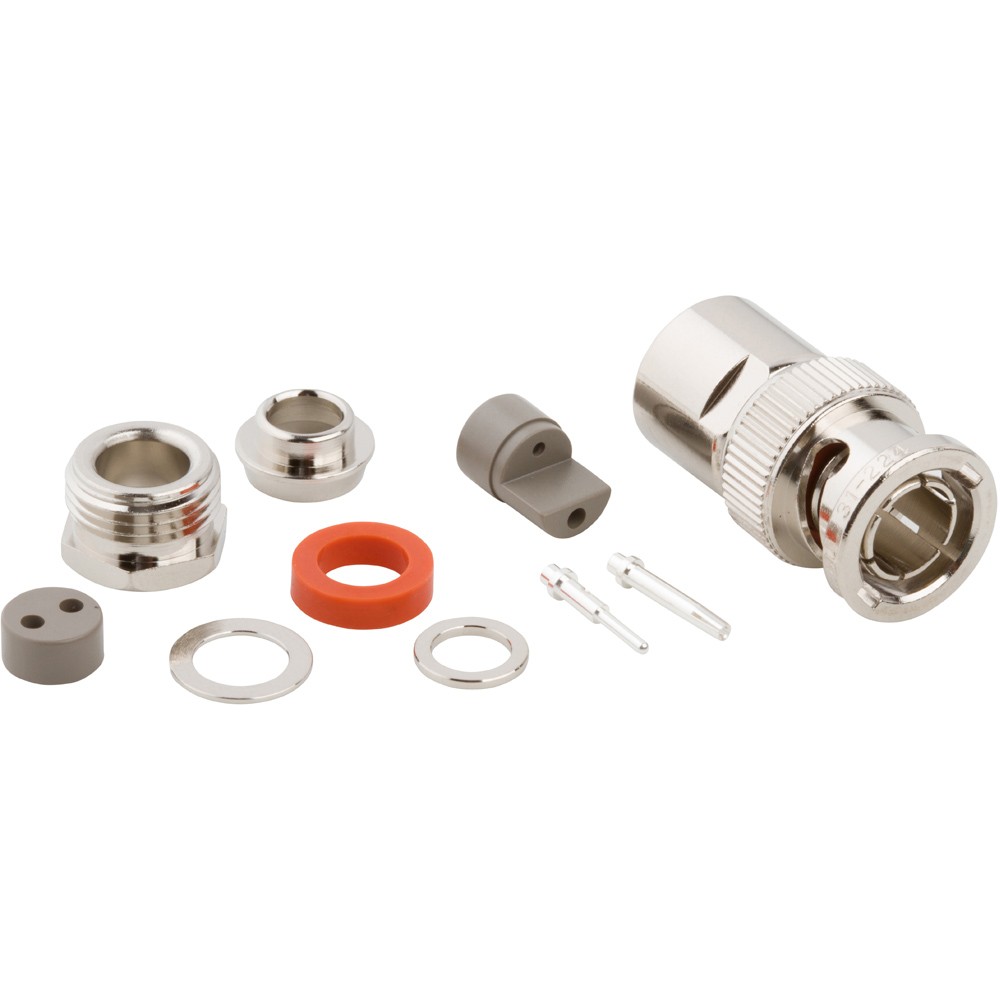

Also known as Twin BNC, Twinax connectors are used with 78 and 95 ohm conductor cables and operate from 0 to 200 MHz. Due to the improved shielding characteristic (>30dB), these connectors are used in balanced low level and high sensitivity circuits.

Twinax connectors feature keyway polarization to ensure system integrity and prevent signals from being mixed, making them ideal for computer network applications.

Features and Benefits
  • Polarized key and keyway construction guarantees correct dual contact mate
  • Twinax center pins can be crimped or soldered to provide dual signals from one connector
  • Large threaded connectors designed for rugged use
  • Crimp contacts ensures lower cost of installation
  • Clamp assembly allows quick assembly without requiring special tools
  • Two Stud bayonet design allows quick and easy coupling
  • Broadband
  • Military
  • Instrumentation

Twinax Connectors Specifications


Impedance Non-Constant (Can be used with 78 and 95 ohm twin conductor cables)
Frequency Range DC - 200 MHz (DC - 500 MHz with Caution)
Voltage Rating
     Keyway Polarization 500 Volts Peak
     Contact Polarization 100 Volts Peak


Temperature Range
     PTFE -55⁰C to +85⁰C
     Copolymer of Styrene (Rexolite) -45⁰C to +121⁰C


Mating Cycles 500 Min
Coupling Mechanism Threaded or Bayonet
Note: These characteristics are typical and may not apply to all connectors.
Connector configurations may affect performance.

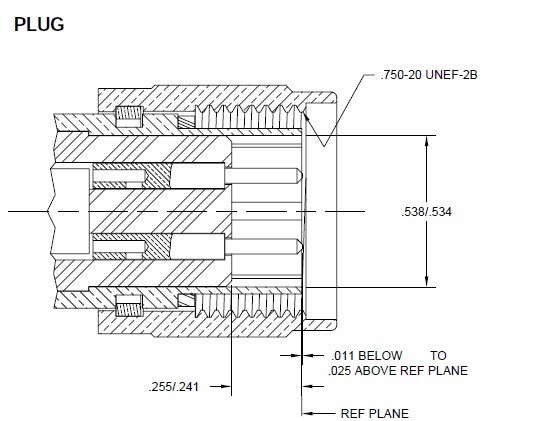

Interface Dimensions
