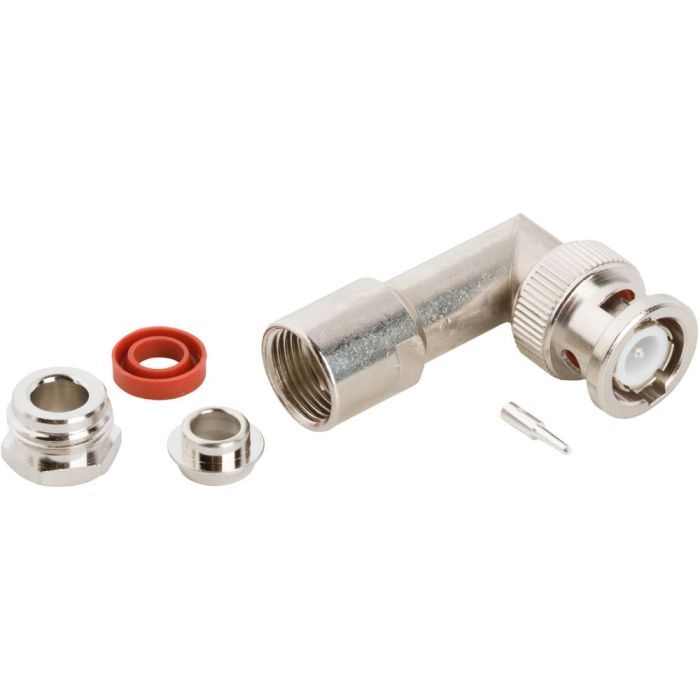

UG-913/U BNC Right Angle Clamp Plug RG-55 RG-142 RG-223 RG-400 50 Ohm

Name: UG-913/U BNC Right Angle Clamp Plug RG-55 RG-142 RG-223 RG-400 50 Ohm
SKU: 031-204

In stock

031-204

Product Compliance

UG-913/U BNC Right Angle Clamp Plug RG-55 RG-142 RG-223 RG-400 50 Ohm

Downloads

Product Life Cycle
Part Status	Active

Alias	UG-913/U
Body Finish	Nickel
Body Material	Brass
Cable Type (Terminates to)	RG-55, RG-142, RG-223, RG-400, Belden 83242, Times SF-142B
Contact Finish	Silver
Contact Material	Beryllium Copper
Contact Termination	Solder
Coupling Mechanism	Bayonet
Export Control Classification Number	EAR99
Frequency (Max GHz)	4
Gender	Plug
IP Rating	Not Rated
Impedance (Ohms)	50
Insulator Material	PTFE
Isolated	No
Low PIM	No
Mil Qualified	Not Mil Qualified
Non Magnetic	No
Orientation	Right Angle
Panel Mounting Feature	Not Applicable
Ports	1 (Single Port)
Size Category	Miniature
Temp (Max Degrees Celsius)	165
Temp (Min Degrees Celsius)	-65
Termination Style	Cable - Clamp
