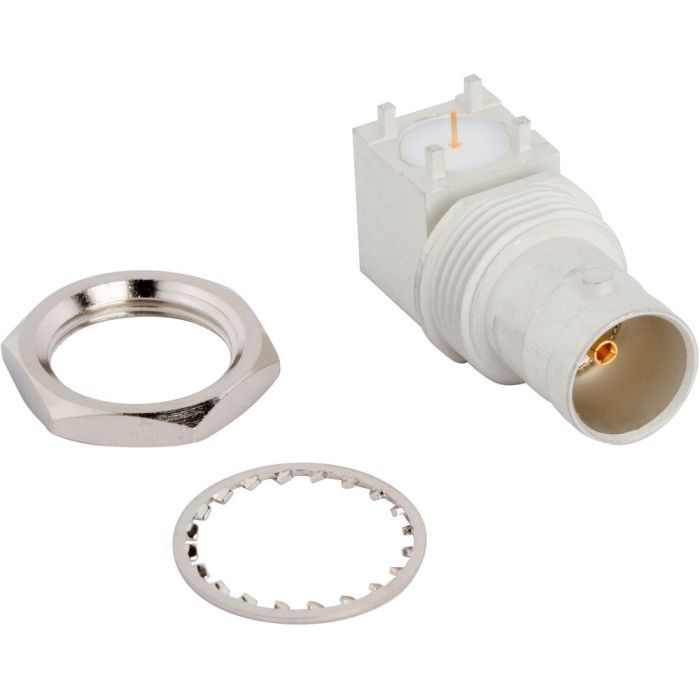

BNC Right Angle PCB Jack Through Hole Bulkhead Rear Mount 75 Ohm 12G Optimized

In stock
031-70535-12G
BNC Right Angle PCB Jack Through Hole Bulkhead Rear Mount 75 Ohm 12G Optimized
Product Compliance
RF Connector BNC Right Angle PCB Jack Through Hole Bulkhead Rear Mount 75 Ohm 12G Optimized

Product Life Cycle

Product Life Cycle
Part StatusActive

Product Specifications

Body FinishMatte Tin
Body MaterialBrass
Cable Type (Terminates to)Not Applicable
Contact FinishGold
Contact MaterialPhosphor Bronze
Contact TerminationSolder
Coupling MechanismBayonet
Export Control Classification NumberEAR99
Frequency (Max GHz)12
GenderJack
IP RatingNot Rated
Impedance (Ohms)75
Insulator MaterialPTFE
IsolatedNo
Low PIMNo
Mil QualifiedNot Mil Qualified
Non MagneticNo
OrientationRight Angle
Panel Mounting FeatureBulkhead - Rear Mount
Ports1 (Single Port)
Size CategoryMiniature
Temp (Max Degrees Celsius)165
Temp (Min Degrees Celsius)-65
Termination StylePCB - Through Hole
