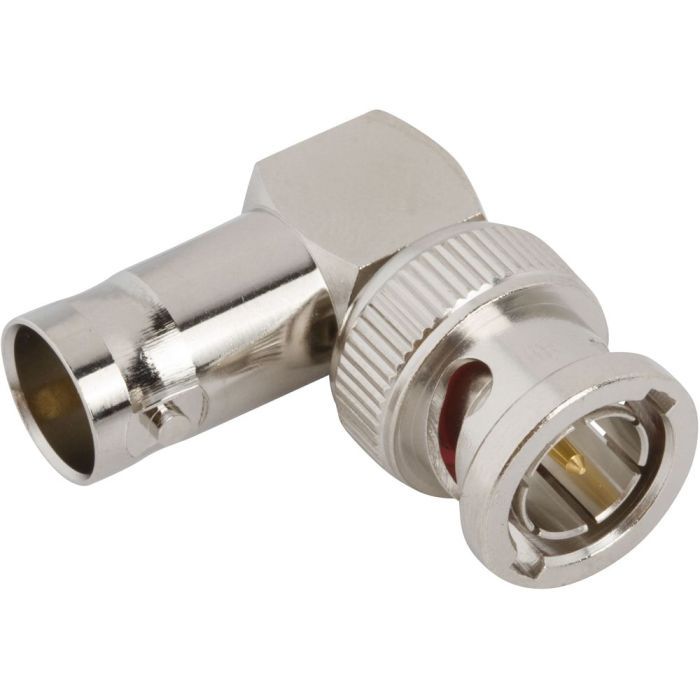

BNC Jack to BNC Plug 75 Ohm Right Angle 12G Optimized

Name: BNC Jack to BNC Plug 75 Ohm Right Angle 12G Optimized
SKU: 031-9-75-12G

In stock

031-9-75-12G

Product Compliance

BNC Jack to BNC Plug 75 Ohm Right Angle 12G Optimized

Downloads

Product Life Cycle
Part Status	Active

Adapter Configuration	BNC Jack to BNC Plug
Adapter Type	In-Series
Body Finish	Nickel
Body Material	Phosphor Bronze
Contact Finish	Gold
Contact Material	Brass and Beryllium Copper
Export Control Classification Number	EAR99
Frequency (Max GHz)	12
IP Rating	Not Rated
Impedance (Ohms)	75
Insulator Material	PTFE
Isolated	No
Low PIM	No
Mil Qualified	Not Mil Qualified
Non Magnetic	No
Orientation	Right Angle
Panel Mounting Feature	Not Applicable
Temp (Max Degrees Celsius)	165
Temp (Min Degrees Celsius)	-65
