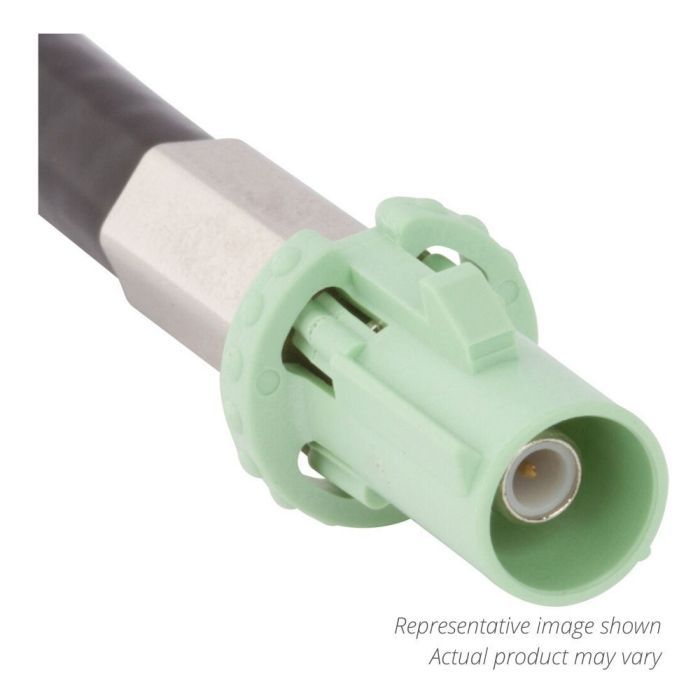

FAKRA GEN 2 Straight Crimp Plug RG-59 RG-62 50 Ohm K Key Code
In stock
2FA1-NKSP-C65S1
FAKRA GEN 2 Straight Crimp Plug RG-59 RG-62 50 Ohm K Key Code
Product Compliance
- RoHS (EU). Under Review - Please Contact Us
- California residents see Prop 65 Warning
- Additional compliance information is available in our Compliance Center.
RF Connector FAKRA Generation 2 Straight Crimp Plug RG-59 RG-62 50 Ohm K Key Code
Downloads
Product Life Cycle
| Part Status | Active |
|---|
Product Specifications
| Body Finish | Nickel |
|---|---|
| Body Material | Zinc Diecast |
| Cable Type (Terminates to) | RG-59, RG-62, Belden 8221, Belden 8241, Belden 9169, Belden 9204, Belden 9228, Canare LV-61S |
| Contact Finish | Gold |
| Contact Material | Phosphor Bronze |
| Contact Termination | Crimp |
| Coupling Mechanism | Push-on |
| Export Control Classification Number | EAR99 |
| FAKRA Generation | 2 |
| FAKRA Keycode | K - Curry |
| Frequency (Max GHz) | 0.5 |
| Gender | Plug |
| IP Rating | Not Rated |
| Impedance (Ohms) | 50 |
| Insulator Material | PTFE |
| Isolated | No |
| Low PIM | No |
| Mil Qualified | Not Mil Qualified |
| Non Magnetic | No |
| Orientation | Straight |
| Panel Mounting Feature | Not Applicable |
| Ports | 1 (Single Port) |
| Size Category | Subminiature |
| Temp (Max Degrees Celsius) | 85 |
| Temp (Min Degrees Celsius) | -40 |
| Termination Style | Cable - Crimp |
| Thread Direction | Standard |
