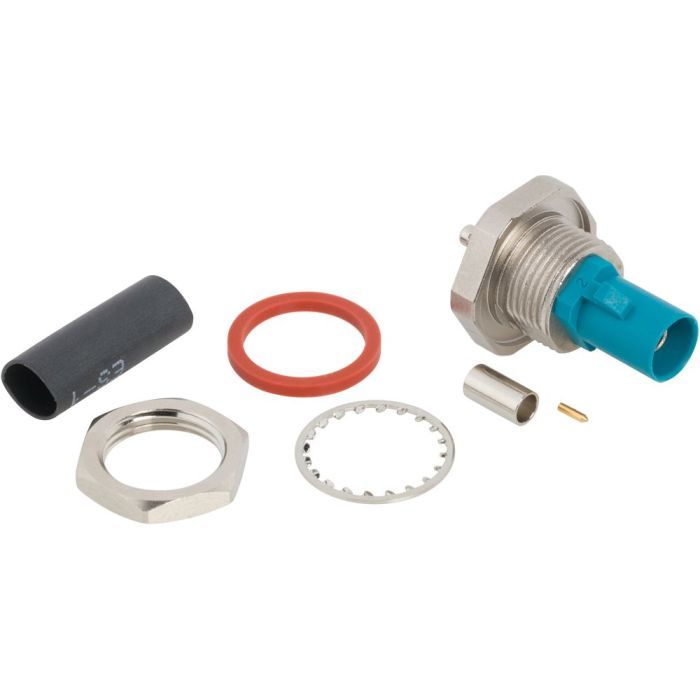

FAKRA Gen 2 Straight Crimp Plug RG-174 Rear Mount Bulkhead 50 Ohm IP67 Z Code

FAKRA Gen 2 Straight Crimp Plug RG-174 Rear Mount Bulkhead 50 Ohm IP67 Z Code

Name: FAKRA Gen 2 Straight Crimp Plug RG-174 Rear Mount Bulkhead 50 Ohm IP67 Z Code
SKU: 2FA1-NZSP-C01E2

In stock

2FA1-NZSP-C01E2

RF Connector FAKRA Gen 2 Straight Crimp Plug RG-174 Rear Mount Bulkhead 50 Ohm IP67 Z Code

Product Compliance

RF Connector FAKRA Gen 2 Straight Crimp Plug RG-174 Rear Mount Bulkhead 50 Ohm IP67 Z Code

Downloads

Product Life Cycle
Part Status	Active

Body Finish	Nickel
Body Material	Zinc Diecast
Cable Type (Terminates to)	RG-174, RG-188, RG-316, Times LMR-100A, Belden 7805A, Belden 8216, Belden 83269, Belden 83284, Belden 84316, Times RG-174LL, Shikoku 1.5DS-QFB-TA, Sumitomo 1.5DS-GXC-SP, Leoni DACAR 462, Leoni DACAR 462-2
Contact Finish	Gold
Contact Material	Brass
Contact Termination	Solder
Coupling Mechanism	Push-on
Detent Type	Not Applicable
Export Control Classification Number	EAR99
FAKRA Keycode	Z - Water Blue (Universal)
Gender	Plug
IP Rating	IP67
Impedance (Ohms)	50
Insulator Material	PTFE
Isolated	No
Low PIM	No
Mil Qualified	Not Mil Qualified
Non Magnetic	No
Orientation	Straight
Panel Mounting Feature	Bulkhead - Rear Mount
Ports	1 (Single Port)
Size Category	Subminiature
Temp (Max Degrees Celsius)	100
Temp (Min Degrees Celsius)	-40
Termination Style	Cable - Crimp
Thread Direction	Standard
