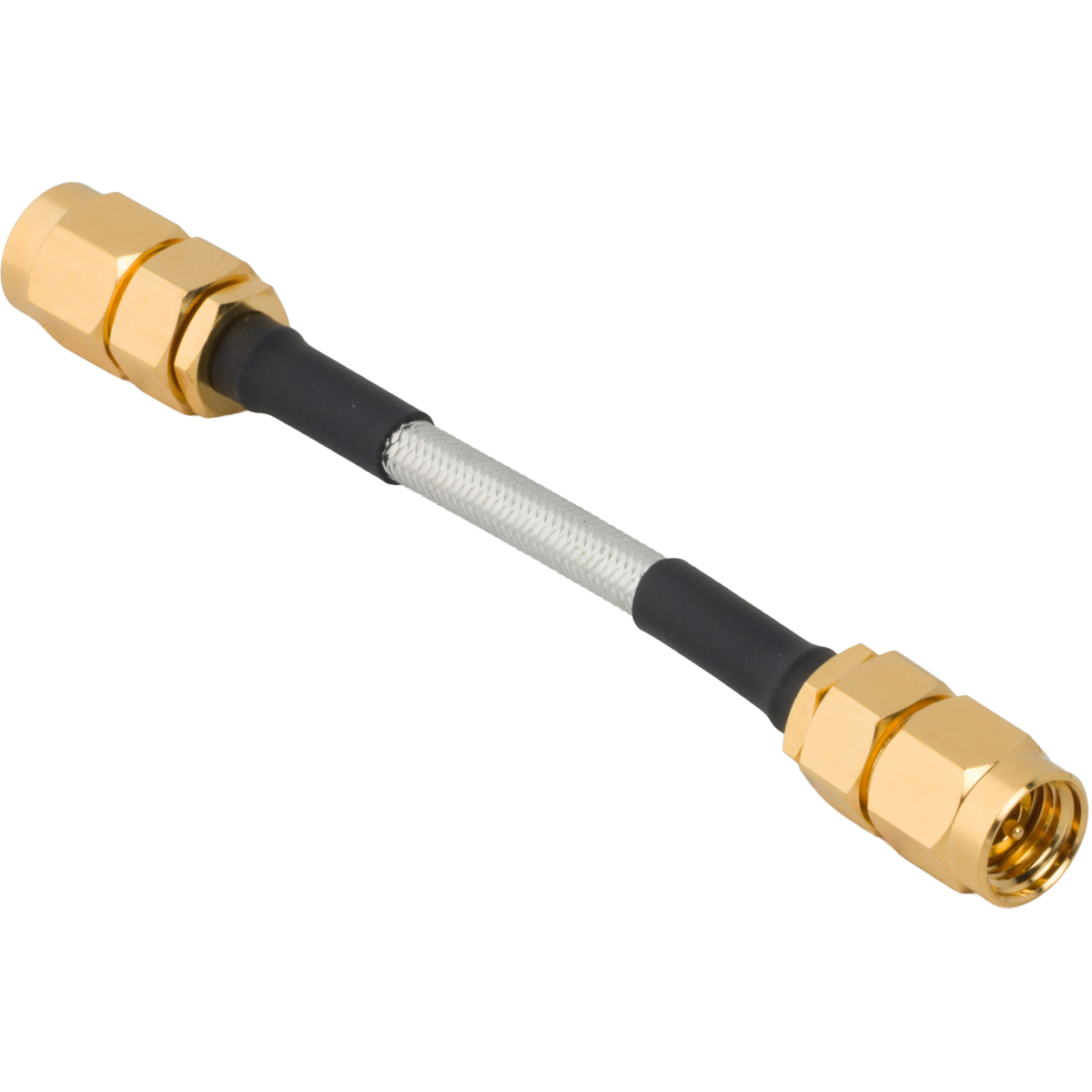

2.92 mm Cable Assemblies on 0.141" Conformable Cable

Pre-configured 2.92 mm cable assemblies built on durable 0.141-inch conformable cable. Available in a straight plug (male) to straight plug (male) configuration in standard lengths from six inches to one meter, these assemblies are designed for applications requiring reliable high-frequency signal transmission, mechanical stability and repeatable performance. They are ideal for military and aerospace systems, 5G wireless infrastructure, instrumentation and other demanding RF applications.

The 2.92 mm cable assembly features a precision RF interface similar to SMA, utilizing a smaller internal
body diameter and air dielectric to support frequencies up to 20 GHz. Gold-plated stainless steel
connectors are intermateable with SMA and 3.5 mm interfaces while maintaining excellent electrical
performance. The hand formable 0.141" conformable cable offers enhanced mechanical durability,
excellent power handling and stable signal transmission, while providing low VSWR and outstanding
return and insertion loss characteristics.
