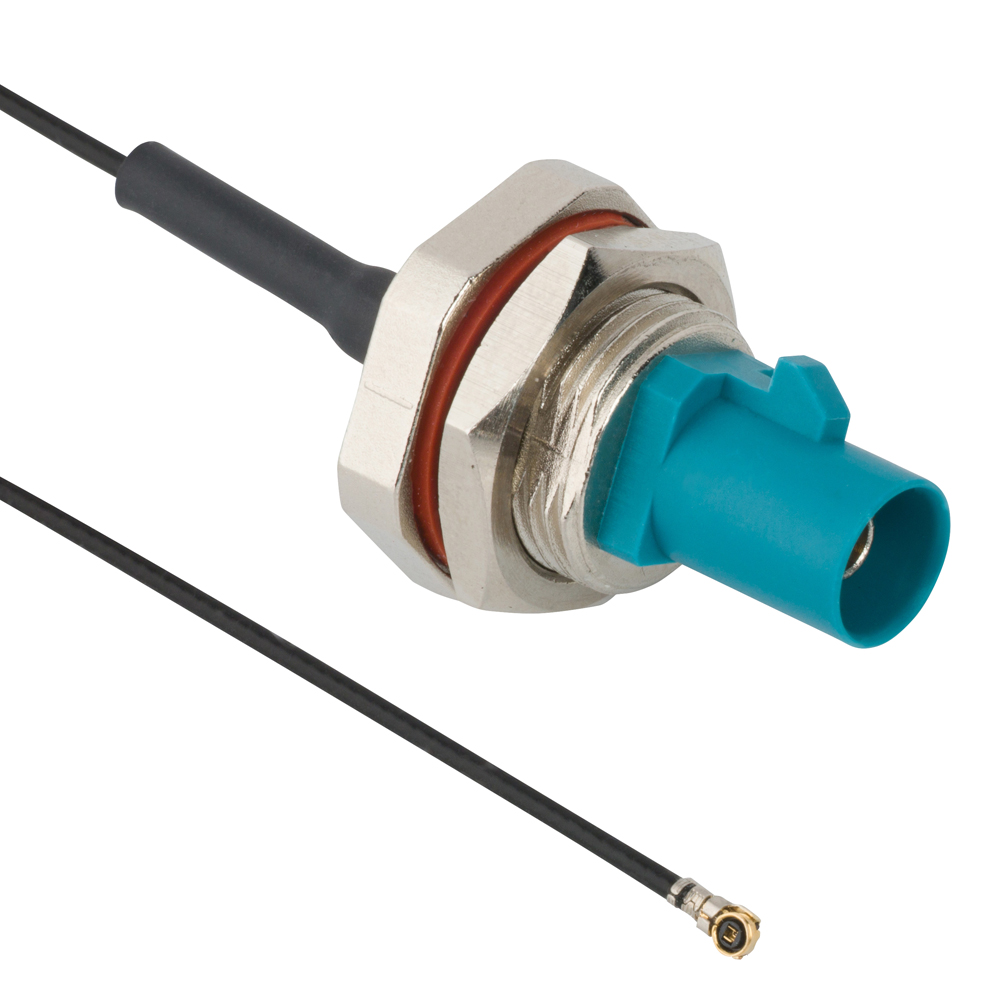

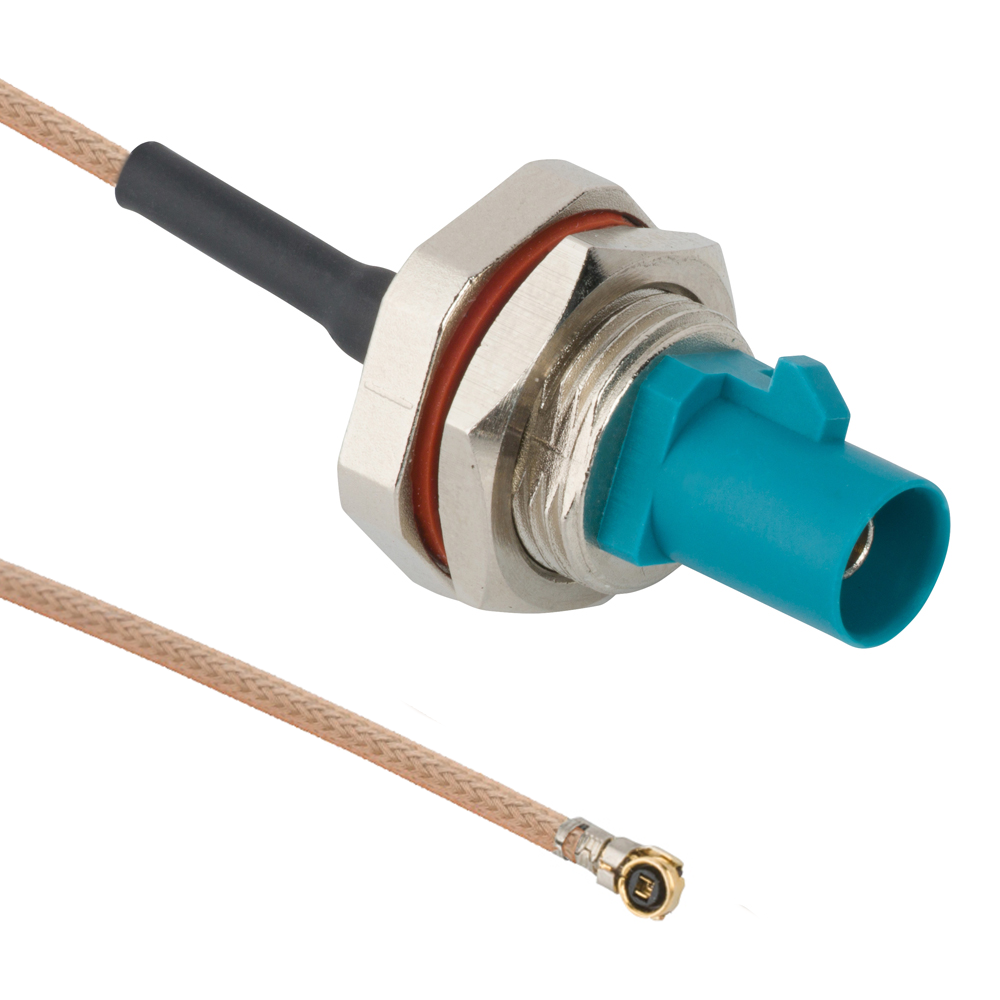

AMC To IP67 FAKRA Bulkhead Cable Assemblies
These new assemblies feature a sealed IP67-rated FAKRA bulkhead plug on one end and a compact AMC right-angle plug on the other, designed on flexible RG-178 cable. This cable type allows for easy routing around obstacles and provides excellent signal integrity. This assembly is ideal for automotive applications such as ADAS, telematics and infotainment systems, as well as industrial and outdoor infrastructure that require sealed connections.
The FAKRA to AMC cable assembly is engineered with a rear-mounting FAKRA bulkhead which ensures dependable installation in enclosures and vehicle panels. This connector is manufactured from nickel-plated zinc alloy with a gold-plated beryllium copper contact, whereas the AMC connector is built from gold-plated bronze with a gold-plated phosphor bronze contact. These assemblies provide reliable RF connectivity up to 3 GHz and are available in a variety of standard lengths from 50 to 300 millimeters.
The FAKRA to AMC cable assembly is engineered with a rear-mounting FAKRA bulkhead which ensures dependable installation in enclosures and vehicle panels. This connector is manufactured from nickel-plated zinc alloy with a gold-plated beryllium copper contact, whereas the AMC connector is built from gold-plated bronze with a gold-plated phosphor bronze contact. These assemblies provide reliable RF connectivity up to 3 GHz and are available in a variety of standard lengths from 50 to 300 millimeters.
Features
• IP67 sealing on FAKRA interface protects from dust and water ingress• Rear-mount bulkhead design enables secure installation into enclosures and vehicle panels
• RG-178 cable supports small diameter routing in space-constrained areas
• Durable materials
Applications
• Autonomous vehicle systems• Telematics and infotainment systems
• ADAS
• Compact embedded RF modules
