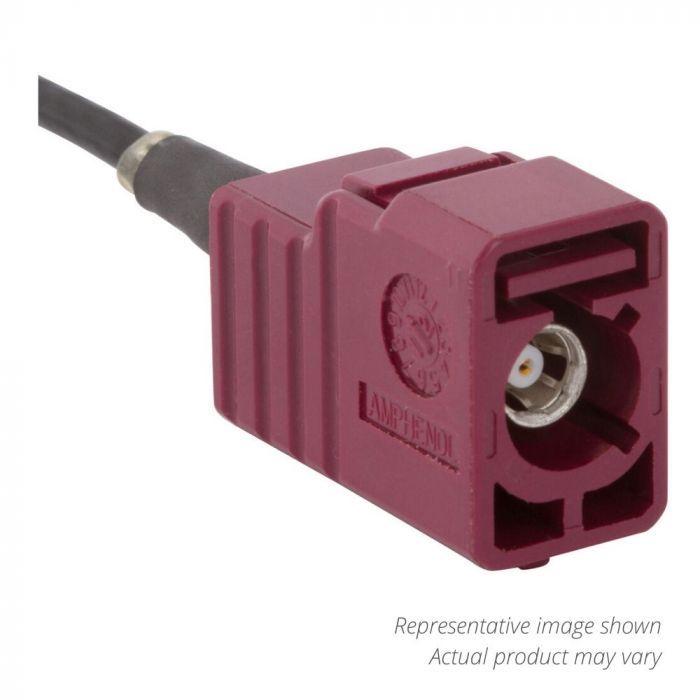

FAKRA GEN 3 Straight Crimp Jack RG-174 RG-188 RG-316 Times LMR-100A 50 Ohm IP67 M Key Code
In stock
3FA1-NMSJ-C01E6
FAKRA GEN 3 Straight Crimp Jack RG-174 RG-188 RG-316 Times LMR-100A 50 Ohm IP67 M Key Code
Product Compliance
- RoHS (EU). Compliant with no exemptions - View Certificate
- California residents see Prop 65 Warning
- Additional compliance information is available in our Compliance Center.
RF Connector FAKRA Generation 3 Straight Crimp Jack RG-174 RG-188 RG-316 Times LMR-100A 50 Ohm IP67 M Key Code
Downloads
Product Life Cycle
| Part Status | Active |
|---|
Product Specifications
| Body Finish | Nickel/Tin |
|---|---|
| Body Material | Phosphor Bronze |
| Cable Type (Terminates to) | RG-174, RG-188, RG-316, Times LMR-100A, Belden 7805A, Belden 8216, Belden 83269, Belden 83284, Belden 84316, Times RG-174LL, Shikoku 1.5DS-QFB-TA, Sumitomo 1.5DS-GXC-SP, Leoni DACAR 462, Leoni DACAR 462-2 |
| Contact Finish | Gold |
| Contact Material | Phosphor Bronze |
| Contact Termination | Crimp |
| Coupling Mechanism | Push-on |
| Export Control Classification Number | EAR99 |
| FAKRA Generation | 3 |
| FAKRA Keycode | M - Pastel Orange |
| Frequency (Max GHz) | 3 |
| Gender | Jack |
| IP Rating | IP67 |
| Impedance (Ohms) | 50 |
| Insulator Material | PBT |
| Isolated | No |
| Low PIM | No |
| Mil Qualified | Not Mil Qualified |
| Non Magnetic | No |
| Orientation | Straight |
| Panel Mounting Feature | Not Applicable |
| Ports | 1 (Single Port) |
| Size Category | Subminiature |
| Temp (Max Degrees Celsius) | 85 |
| Temp (Min Degrees Celsius) | -40 |
| Termination Style | Cable - Crimp |
| Thread Direction | Standard |
