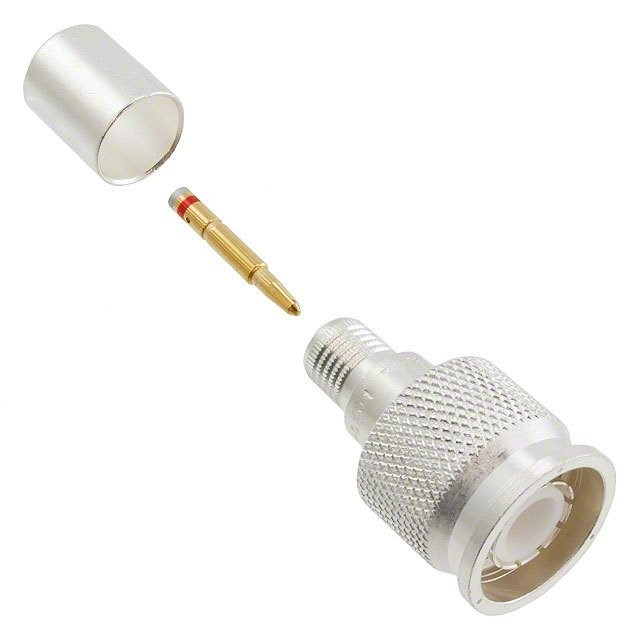

SC Type
The SC-Type connector series is a medium size, 50 ohm series, with performance up to 11 GHz.

SC-Type connectors are manufactured to meet MIL-C-39012 category D, meeting all of the mechanical and electrical requirements of the Limited Co-ordination Specification (LC Spec.) as generated by the U.S. Air Force.

Features and Benefits
  • MIL-qualified per M39012 provides consistent performance and dependability
  • Threaded coupling provides secure mating
  • Instrumentation
  • Military/Aerospace
  • Test & Measurement

SC-Type Connectors Specifications


Impedance 50 Ohm
Frequency Range DC - 11 GHz
Voltage Rating 1000 Volts RMS Continuous
Dielectric Withstanding Voltage 3000 VRMS Max
VSWR  (Return Loss)
     DC - 11 GHz 1.35 (-16 dB) Max
Insulation Resistance  5000 MΩ Min
Center Contact Resistance 1.0 mΩ Max
Outer Contact Resistance .15 mΩ Max


Temperature Range −65°C to +165°C
Corrosion MIL-STD-202, Method 101 (Test Condition B) - 5% Salt Solution
Vibration MIL-STD-202, Method 204 (Test Condition B)
Mechanical Shock MIL-STD-202, Method 213 (Test Condition B) - No Discontinutiy Permitted
Moisture Resistance MIL-STD-202, Method 106


Mating Cycles 500 Min
Coupling Mechanism Threaded
Interface Specification MIL-STD-348
Mating Torque, Min Working 6 - 10 inch-pounds (0.7 - 1.1 N-m)
Note: These characteristics are typical and may not apply to all connectors.
Connector configurations may affect performance.

Interface Dimensions
