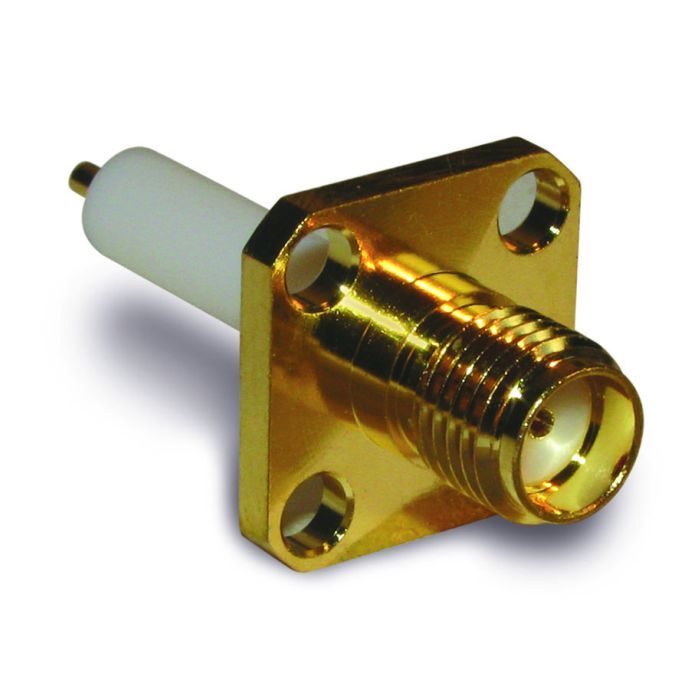

AMPHENOL RF PART NUMBER 132146 SMA Straight Jack, Round Post, 50 Ohm, 4-Hole Flange
FIND STOCK & BUY NOW
PRODUCT OVERVIEW
RF Connector, SMA Straight Jack, Round Post, 50 Ohm, 4-Hole Flange
Product Type
Connectors
Product Series
SMA
Status
Active
DOWNLOADS
PRODUCT SPECIFICATIONS
Brand Amphenol Connex
Gender Jack
Orientation Straight
Termination Style Round Post
Impedance (Ohms) 50
Body Finish Gold
Body Material Brass
Contact Finish Gold
Contact Material Beryllium Copper
Contact Termination Style Solder
Insulator Material PTFE
Coupling Mechanism Threaded
Mounting Feature 4-Hole Flange
Max Frequency (GHz) 12.4
Polarity Standard
Extended Dielectric Yes
Extended Dielectric Length (Inches) 0.591
Post Length (Inches) 0.705
Thread Direction Standard
Min. Temp. (Celsius) -65
Max. Temp. (Celsius) 165
Mating Cycles 500
Weight (Grams) 3.1
Package Type Bulk
