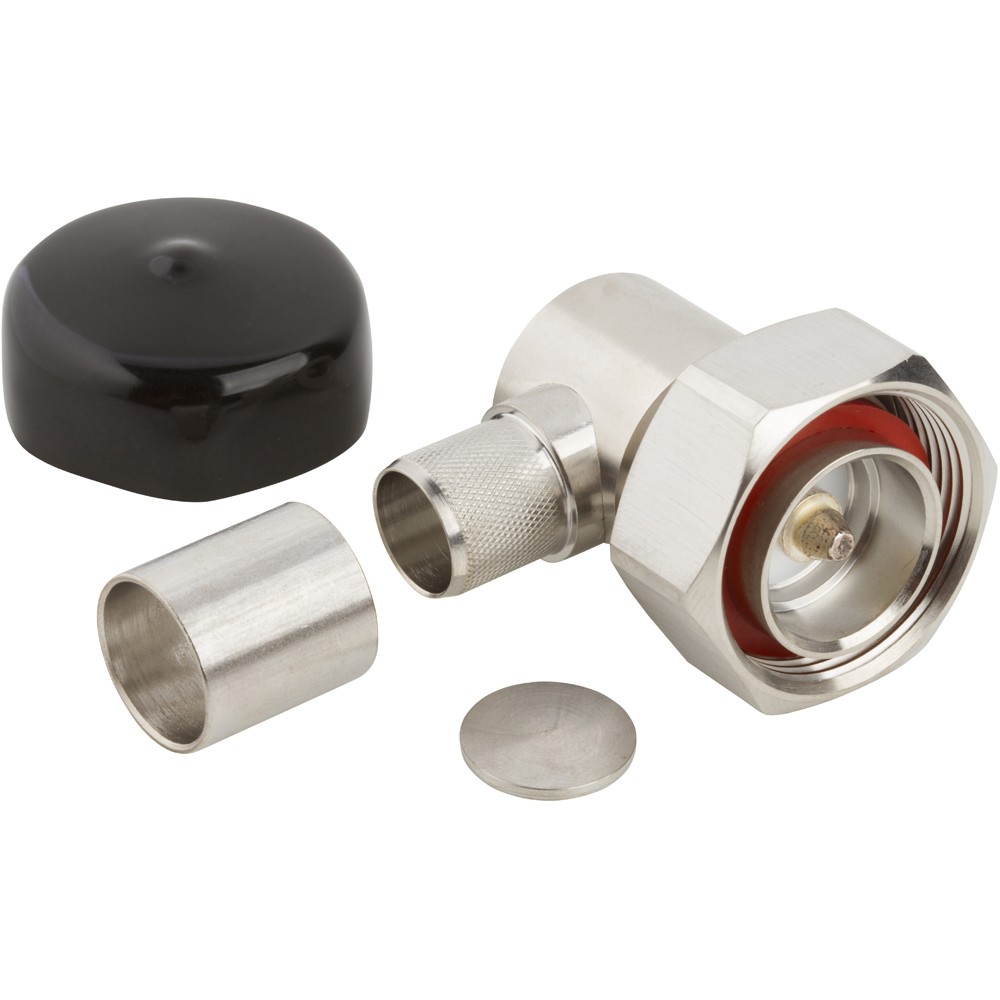

7-16 Connectors

7-16 Connectors

The 7-16 series name derives from the metric dimensions of the connector interface: 7mm OD of inner contact, 16 mm ID of outer contact. These connectors provide superior performance for both return loss and intermodulation distortion (IMD).

These connectors are very robust, extremely stable and waterproof, making them ideal for applications where vibration resistance and environmental protection is important. They have a pre-assembled gasket which protects against dust and water (IP68) per IEC 169. Because they are designed to minimize signal distortion from intermodulation, 7-16 connectors are especially suitable for base stations and broadcast communication systems.

Features and Benefits
  • Large form factor interface supports high power applications
  • Excellent low PIM performance
  • Waterproof IP68 construction protects against dust and water
  • Self-flaring design ensures ease of installation with standard hand tool
  • Pre-assembled gasket protects against dust (P68) and water (IP68) per IEC 169
  • Silver-plated contacts and silver or white bronze-plated bodies
  • Delivers high conductivity and corrosion resistance
  • Wireless Infrastructure
  • Lightning Protection
  • Base Stations
  • Satellite Communications
  • Antenna Systems

7-16 Connectors Specifications


Impedance 50 Ohm
Frequency Range DC - 7.5 GHz
Voltage Rating 500 Volts RMS Continuous
Dielectric Withstanding Voltage 2300 VRMS Max
VSWR  (Return Loss)
     DC - 500 MHv 1.052 (-32 dB) Max
     500 MHz - 4 GHz 1.2 (-21 dB) Max
     4 - 7 GHz 1.33 (-17 dB) Max
Insulation Resistance  5000 MΩ Min
Center Contact Resistance 0.4 mΩ Max
Outer Contact Resistance 0.2 mΩ Max
RF Leakage -128 dB Max (DC - 1 GHz)
Insertion Loss .05 √(f(GHz)) dB Max
Passive Intermodulation (PIM) -166 dBc with 2 X 43 dBm Inputs
Power Handling 3000 W @ 1 GHz @ 25ºC


Temperature Range −40°C to +85°C
Thermal Shock IEC 68, Part 2-1
Corrosion IEC 68, Part 2-11
Vibration IEC 68, Part 2-6
Mechanical Shock IEC 68, Part 2-27
Interface Sealing IP67 Sealed in Mated Condition


Mating Cycles 500 Min
Coupling Mechanism Threaded
Interface Specification DIN 47223
Engagement Force 100 N (22.5 lbs) Max
Disengagement Force 100 N (22.5 lbs) Max
Mating Torque, Min Working 25 N-m (221 in-lbs)
Note: These characteristics are typical and may not apply to all connectors.
Connector configurations may affect performance.
