Radio frequency antennas are designed to send and receive RF signals. They are made to mate with RF connector interfaces or to be mounted directly to a PCB and come in various internal and external configurations.

Amphenol’s Off-The-Shelf (OTS) antenna portfolio provides a wide range of embedded, internal and external antennas - including Cellular, Wi-Fi, GNSS, BT/BLE, LoRa, UWB, WLC, and NFC antennas. These antennas are specially designed for IoT devices, are easy to implement, and provide high efficiency and performance. RF antennas are available in several configurations, with options for the number and range of frequency bands, antenna construction, and RF connector mating interfaces.

Download the Antenna RF Solutions Guide

Antenna Types

Amphenol RF antennas are engineered to meet the demands of various environments and applications, with mechanical designs that ensure durability, performance, and ease of integration. Available in multiple configurations, these antennas can be embedded directly onto a PCB, mounted internally within a device, or externally for enhanced signal transmission. The mechanical designs range from compact and flexible PCB antennas ideal for confined spaces, to robust external antennas designed to withstand harsh outdoor conditions.

Learn More about the Wireless Protocols Supported by Amphenol RF Antennas



Embedded Antennas

Any type of antenna that is surface mounted on the PCB is known as an embedded antenna. The most common antenna types are ceramic chip antennas, composite material chip antennas, and sheet metal antennas. The antenna design is often monopole, loop, IFA, or PIFA antennas. Embedded antennas are ideal for wireless modules, routers and gateways, payment terminals, and other miniaturized applications.

Single Band | Dual Band | Multiband | Wideband | AMC | PCB Surface Mount

View All Embedded Antennas



Internal Antennas

Internal antennas are assembled or mounted inside a device but are not surface mounted directly to a PCB. Flexible and PCB antennas terminated to cable with an RF connector on the other end are the most common configuration. Internal antennas typically have a dipole design. Internal antennas can be used when there is room to mount a flexible pad to the inside surface of an application case. Common uses for internal antennas include tablets, autonomous or robotic appliances, and portable entertainment devices.

Single Band | Dual Band | Multiband | Wideband | FPC Trace | PCB Trace

View All Internal Antennas



External Antennas

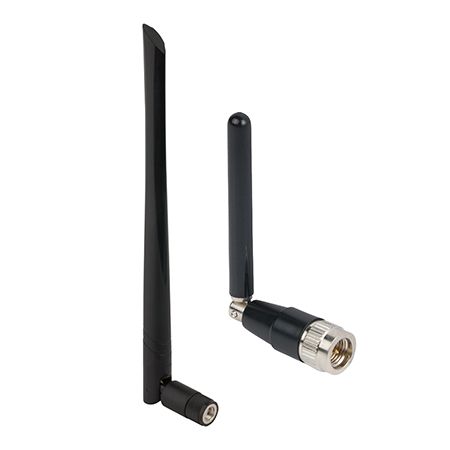

External antennas are usually mounted on the outside of a device by means of an RF connector interface. They are made for indoor and outdoor use, with robust designs available for harsher environments. External antennas can be monopole or dipole designs and are typically used for higher power transmission and reception. External antennas can also have hinge or swivel features and are often seen on handheld radios, routers, and security cameras.

Single Band | Dual Band | Multiband | Wideband | SMA | RP-SMA | N-Type | AMC

View All External Antennas



Wireless Protocols

View Amphenol RF Antenna Overview Guide: Function



Wi-Fi

Wi-Fi, short for Wireless Fidelity, is a technology that allows electronic devices to connect to a wireless local area network (WLAN), typically using the 2.4 gigahertz (GHz) or 5 GHz radio frequencies. It enables internet access and data transfer without the need for physical cables, offering flexibility and convenience in connectivity.
View Wifi Antennas

5G/LTE

LTE, or Long-Term Evolution, is a standard for wireless broadband communication for mobile devices and data terminals. It provides high-speed data transmission, low latency, and improved spectral efficiency compared to previous cellular technologies.
View 5G/LTE Antennas

Bluetooth

Bluetooth is a wireless technology standard used for exchanging data over short distances, typically between mobile devices, computers, and peripherals such as keyboards, mice, and headphones. It operates on the 2.4 GHz frequency band
and facilitates convenient, low-power communication between devices.
View Bluetooth Antennas

LoRa

LoRa (Long Range) is a low-power wide-area network (LPWAN) technology designed for long-range communication with low data rates between remote sensors and gateways. It enables efficient transmission of small packets of data over several kilometers, making it suitable for applications like IoT deployments and smart city initiatives.
View LoRa Antennas

UWB

Ultra-Wideband (UWB) is a wireless communication technology that utilizes a broad spectrum of frequencies to transmit data over short distances with high precision and low power consumption. It enables applications such as accurate indoor
positioning, secure device authentication, and high-speed data transfer between nearby devices.
View UWB Antennas

Zigbee

Zigbee is a low-power, low-data rate wireless communication protocol commonly used in IoT applications like smart home devices and industrial automation. It operates on the IEEE 802.15.4 standard and facilitates mesh networking, allowing devices to communicate with each other and form self-organizing networks.
View Zigbee Antennas
