HSD Connectors
High-Speed Data RF interfaces engineered for automotive and infotainment systems
Overview
Amphenol RF’s HSD (High-Speed Data) connectors are specialized, shielded RF solutions designed for high-bandwidth digital communication in compact spaces. Compliant with automotive and multimedia standards, they combine robust mechanical performance with reliable signal integrity—ideal for LVDS cameras, infotainment systems, USB, HDMI and more.
These board-mount and cable-mount HSD connectors support low-voltage differential signaling and are available in straight and right-angle styles. Designed for demanding environments, they facilitate automatic assembly and error-proof mating—with scoop-proof designs and primary/secondary locks to prevent misalignment or connector damage.
Features and Benefits
- Fully shielded design minimizes crosstalk and EMI in high-speed differential systems
- Compact form factor meets tight automotive packaging constraints using twisted-quad cables
- USCAR‑2 compliant with robust retention: features primary/secondary locks and enhanced retention force for reliability
- Assembly-ready auto solder/crimp options with scoop-proof and self-aligning insert design for manufacturing ease
- Versatile configurations: board-receptacles, cable plugs, straight and right-angle options, and tape-and-reel packaging
Key Technical Details
- Impedance: 100 Ω differential to support LVDS, USB, IEEE‑1394, Ethernet, and others
- Frequency Range: Suitable for high-speed data transmission (up to ~1.6 Gbps)
- Voltage Rating: Low-voltage differential signaling, optimized for safe and efficient data transfer
- Mating Cycles: Designed for ≥ 25 cycles with high retention force; scoop-proof housing protects pins
- Compliance: Compliant with USCAR‑2 automotive and RoHS standards; reflow and pin‑in‑paste compatible
Applications
- In-vehicle infotainment and head-unit modules
- Rear-seat media displays and cluster instrumentation
- ADAS camera and sensor interfaces
- USB/MIPI CSI/DSI, HDMI, GigE board-to-board channels
- Industrial embedded computing and robotics systems
Browse our full HSD connector line‑up—featuring cable assemblies, board-jacks, right-angle plugs, and various cable-to-board configurations. If you need custom cable lengths, termination styles, or enhanced ruggedization, contact our technical team to design a tailored solution for your application.
Specifications
HSD Connectors
Electrical
| Impedance | 100 Ohm |
| Frequency Range | DC - 2 GHz |
| Voltage Rating | 100 VRMS Max Continuous |
| Dielectric Withstanding Voltage | 250 VRMS Min |
| VSWR (Return Loss) | |
|
DC - 1 GHz
|
1.22 (-20 dB) Max |
|
1 - 2 GHz
|
1.33 (-17 dB) Max |
| Insulation Resistance | 1000 MΩ Min |
| Center Contact Resistance | 10 mΩ Max |
| Outer Contact Resistance | 7.5 mΩ Max |
| Crosstalk | -30 dB Max (DC - 1 GHz) |
| Insertion Loss | 0.1 dB Max (DC - 2 GHz) |
Environmental
| Temperature Range | −40°C to +105°C |
| Thermal Shock | MIL-STD-202, Method 107 (Test Condition B) except high temp test @ +200⁰C |
| Vibration | MIL-STD-202, Method 204 (Test Condition B) |
| Mechanical Shock | MIL-STD-202, Method 213 (Test Condition B) - No Discontinutiy Permitted |
Mechanical
| Mating Cycles | 25 Min |
| Coupling Mechanism | Push-On |
| Interface Specification | Rosenberger HSD |
| Engagement Force | ≤ 30 N |
| Disengagement Force | ≥ 5 N |
Note: These characteristics are typical and may not apply to all connectors.
Connector configurations may affect performance.
Related Resources
Optimize space and increase bandwidth with multi-port mini-FAKRA breakout cables
Amphenol RF is pleased to expand its cable assembly portfolio with fixed length AUTOMATE Type A Mini-FAKRA quad-port jack to (4) SMA plugs or jacks designed on low loss TFC-302LL cable.
Create connections between vehicles and RF interfaces with new FAKRA to SMA adapters
Amphenol RF introduces high-performance FAKRA to SMA adapters into our extensive catalog of RF interconnect products.
FAKRA to AMC4 cable assemblies expand space conscious options
Amphenol RF is pleased to introduce the FAKRA to AMC4 cable assembly product series. This preconfigured assembly combines the automotive industry standard FAKRA connector with the ultraminiature AMC4 connector on the flexible 1.13 mm micro coax cable.
Protect your open FAKRA ports with IP67 rated cap solution
Amphenol RF is pleased to expand our extensive line of FAKRA interconnect with a universal FAKRA cap.
Achieve next-generation automotive connectivity with Amphenol RF’s AUTOMATE mini-FAKRA series
Amphenol RF is proud to introduce the AUTOMATE Mini-FAKRA connector series, the latest in automotive interconnect technology.
RF interconnect for compute modules
Let’s start with the basics - what are compute modules? Compute modules are devices within a vehicle that process inputs and store data.
Optimize space with Mini-FAKRA to IP67 FAKRA automotive interconnect cable solutions
Amphenol RF is pleased to expand our AUTOMATE Type A mini-FAKRA breakout cable line with additional connector configurations and cable types.
Develop next-generation automotive applications with pre-configured FAKRA cable assemblies
Amphenol RF introduces a line of pre-configured FAKRA cable assemblies supporting frequencies through 3 GHz and ideal for a wide range of automotive development applications.
High-bandwidth automotive performance with expanded mini-FAKRA PCB portfolio
Amphenol RF is pleased to expand our multiport AUTOMATE Type A Mini-FAKRA portfolio with additional PCB options.
New IP67 FAKRA rear-mount bulkhead plug supports larger diameter cables
Amphenol RF is pleased to introduce a new IP67 FAKRA straight crimp rear mount bulkhead plug into our expansive automotive and industrial portfolio.
Meet next-gen design requirements with new mini-FAKRA cable assemblies
Amphenol RF is pleased to expand our AUTOMATE Type A mini-FAKRA portfolio with additional pre-configured breakout cable options designed on industry-standard cable types.
Add protection with IP67 rear-mount bulkhead FAKRA connector
Amphenol RF is pleased to introduce the IP67 waterproof FAKRA generation 2 rear mount bulkhead straight plug into our expansive automotive portfolio.
Develop and expand connectivity options for RFID and industrial applications
Amphenol RF is pleased to offer cable assembly configurations featuring popular RF interfaces that are uniquely engineered to support RFID applications.
Enabling automotive and IIoT tech with pre-configured AUTOMATE mini-FAKRA cable assemblies
Amphenol RF is pleased to expand our AUTOMATE Mini-FAKRA cable assembly portfolio with additional pre-configured cable assemblies.
Driving new technology with pre-configured AUTOMATE Mini-FAKRA cable assemblies
Amphenol RF is pleased to expand our AUTOMATE Type A Mini-FAKRA product series with pre-configured cable assemblies.
Increase flexibility with new FAKRA to SMA cable assemblies
Amphenol RF is pleased to introduce FAKRA to SMA cable assemblies into our robust product portfolio.
Boost Reliability With Resistant IP67 FAKRA Rear Mount Bulkhead Plug For RG-178 Cable
Amphenol RF expands its robust portfolio of FAKRA connectors to include a sealed IP67 straight crimp plug option designed for RG-178 cable.
-(1).jpg)
Durable IP67 FAKRA Rear Mount Bulkhead Plugs Support Increased Compatibility
Amphenol RF expands its wide portfolio of FAKRA connectors to include new sealed IP67 straight crimp plug options designed for RG-58 and LMR-195 cable types.

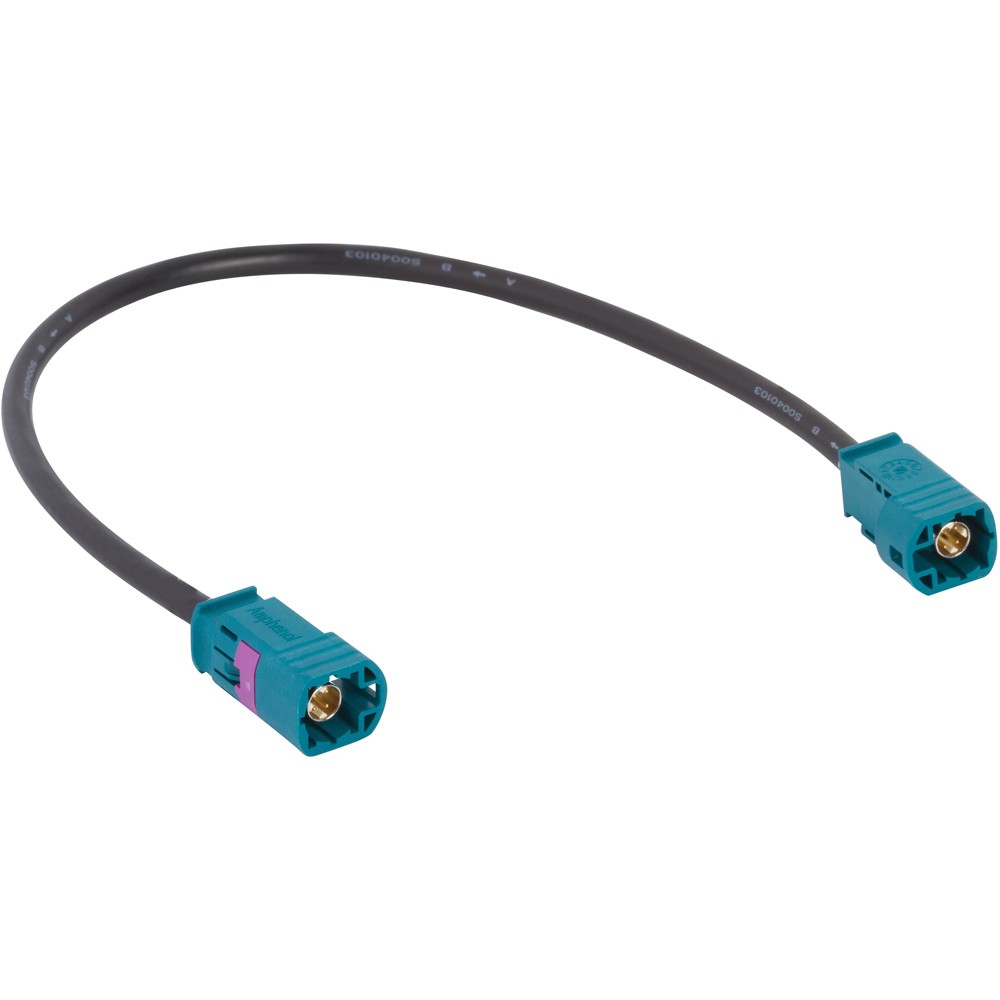

HSD Automotive Cable Assemblies
