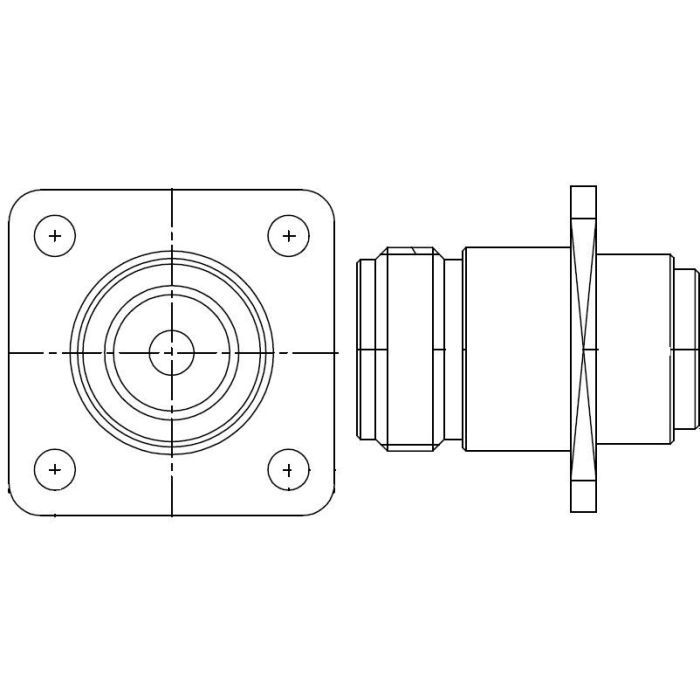

AMPHENOL RF PART NUMBER 172300 N Type Straight Solder Jack for .250 Semi-Rigid, 50 Ohm, 4-Hole Flange
FIND STOCK & BUY NOW
PRODUCT OVERVIEW
RF Connector, N Type Straight Solder Jack for .250 Semi-Rigid, 50 Ohm, 4-Hole Flange
Product Type
Connectors
Product Series
N-Type
Status
Active
DOWNLOADS
PRODUCT SPECIFICATIONS
Brand Amphenol Connex
Gender Jack
Orientation Straight
Termination Style Cable - Solder
Impedance (Ohms) 50
Body Finish Nickel
Body Material Brass
Contact Finish Gold
Contact Material Phosphor Bronze
Contact Termination Style Solder
Insulator Material PTFE
Cable Group L3
Cable Type 0.250 Semi-Rigid, RG-401
Coupling Mechanism Threaded
Mounting Feature 4-Hole Flange
Max Frequency (GHz) 11
Polarity Standard
Thread Direction Standard
Min. Temp. (Celsius) -65
Max. Temp. (Celsius) 165
Mating Cycles 500
Weight (Grams) 36
Package Type Bag
PRODUCT COMPLIANCE
