Frequency Range Chart
The radio spectrum refers to the section of the electromagnetic spectrum that holds all possible radio frequencies ranging from 3 kHz to 300 GHz. Radio frequency is used for radio communication technology, wireless networks and telecommunication systems. Amphenol RF interconnects range from the ultra high to the extremely high frequency range ranges with most of our products falling in the super high or microwave frequency range.
|3 - 30 Hz||Extremely low frequency||ELF|
|30 - 300 Hz||Super low frequency||SLF|
|300 - 3000 Hz||Ultra low frequency||ULF|
|3 - 30 kHz||Very low frequency||VLF|
|30 - 300 kHz||Low frequency||LF|
|300 kHz - 3 MHz||Medium frequency||MF|
|3 - 30 MHz||High frequency||HF|
|30 - 300 MHz||Very high frequency||VHF|
|300 MHz - 3 GHz||Ultra high frequency||UHF|
|3 - 30 GHz||Super high frequency||SHF|
|30 - 300 GHz||Extremely high frequency||EHF|
Radio Band Chart as designated by the International Telecommunication Union (ITU)

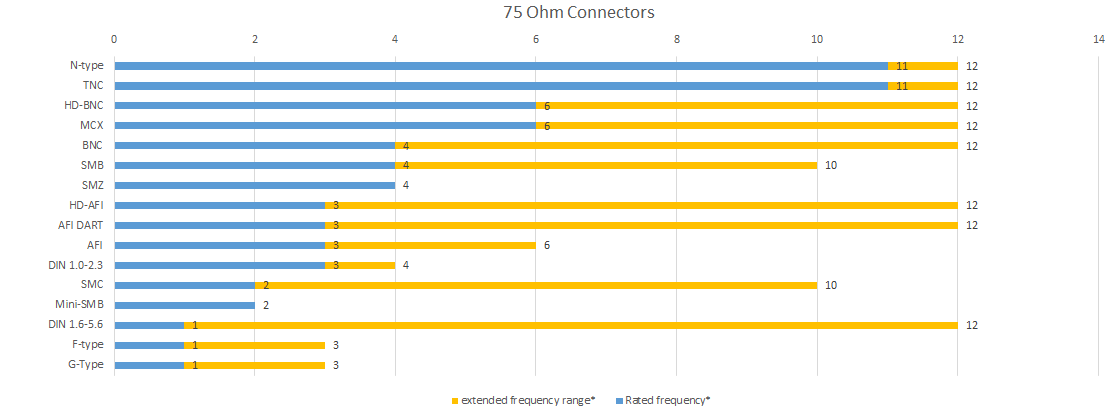

The below chart details our product series and the frequency at which they operate.
