External Antenna 2400-2500MHz 5150-5850MHz 5850-7125MHz

External Antenna 2400-2500MHz 5150-5850MHz 5850-7125MHz

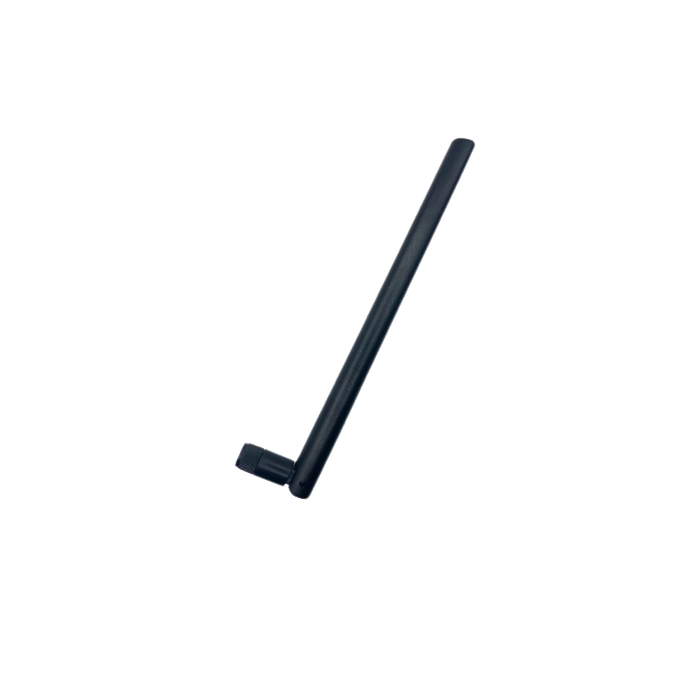

Name: External Antenna 2400-2500MHz 5150-5850MHz 5850-7125MHz
SKU: ST1228-40-501-A

In stock

ST1228-40-501-A

External Antenna, 2400-2500MHz；5150-5850MHz；5850-7125MHz 2.4GHz, 5GHz, 6GHz, Tri-band, Bluetooth, Wi-Fi 6E, WLAN, Zigbee IoT, ISM, UNII

Product Compliance

RoHS (EU). Compliant with Exemption 6C - View Certificate
California residents see Prop 65 Warning
Additional compliance information is available in our Compliance Center.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Passive External Antenna, 2400-2500MHz；5150-5850MHz；5850-7125MHz 2.4GHz, 5GHz, 6GHz, Tri-band, Bluetooth, Wi-Fi 6E, WLAN, Zigbee IoT, ISM, UNII 50 Ohms

Downloads

Antenna Solutions Overview (Size: 167 kb)

Amphenol RF External RF Antennas Datasheet (Size: 358 kb)

RF Antenna Solutions Guide (Size: 2765 kb)

Product Life Cycle

Product Life Cycle
Part Status	Active

Product Specifications

Antenna Connector Type	RP-SMA Plug
Antenna Wireless Application	Bluetooth, UNII, Wi-Fi 6E, Zigbee
Band Type	Multi Band
Center Frequencies	2.45GHz, 5GHz, 6GHz
Electrical Type	Dipole
Export Control Classification Number	EAR99
Frequency (Max GHz)	7.125
IP Rating	IP67
Impedance (Ohms)	50
Mechanical Style	Whip
Mil Qualified	Not Mil Qualified
Number of Bands	3
Physical Style	Swivel
Power (Max Watts)	1
Temp (Max Degrees Celsius)	70
Temp (Min Degrees Celsius)	30
